Bi-fold Doors & Windows
Semi-commercial 80 series bi-folds that open whole walls to the outdoors — tested to AS 2047.
Features
Key features
- C101-P65 bi-fold door up to 3000 H × 6000 W
- R73 bi-fold window for kitchens and servery openings
- Double glazed toughened argon-filled IGUs
- Flyscreen options available
Specifications
Specifications
| Series | Semi-commercial 80 |
|---|---|
| Bi-fold door | C101-P65, up to 3000 H × 6000 W |
| Bi-fold window | R73 |
| Tested glazing | 8/10/6 toughened DGU |
Tested specimen performance (AS 2047)
| Specimen | Serviceability | Ultimate | Water |
|---|---|---|---|
| C101-P65 4-panel bi-fold 2700 × 2600, 8/10/6 toughened DGU | ±1000 Pa | ±3000 Pa | 400 Pa |
Tested specimen performance. Independently tested to AS 2047 by a NATA-accredited laboratory. Test reports available on request.
Technical

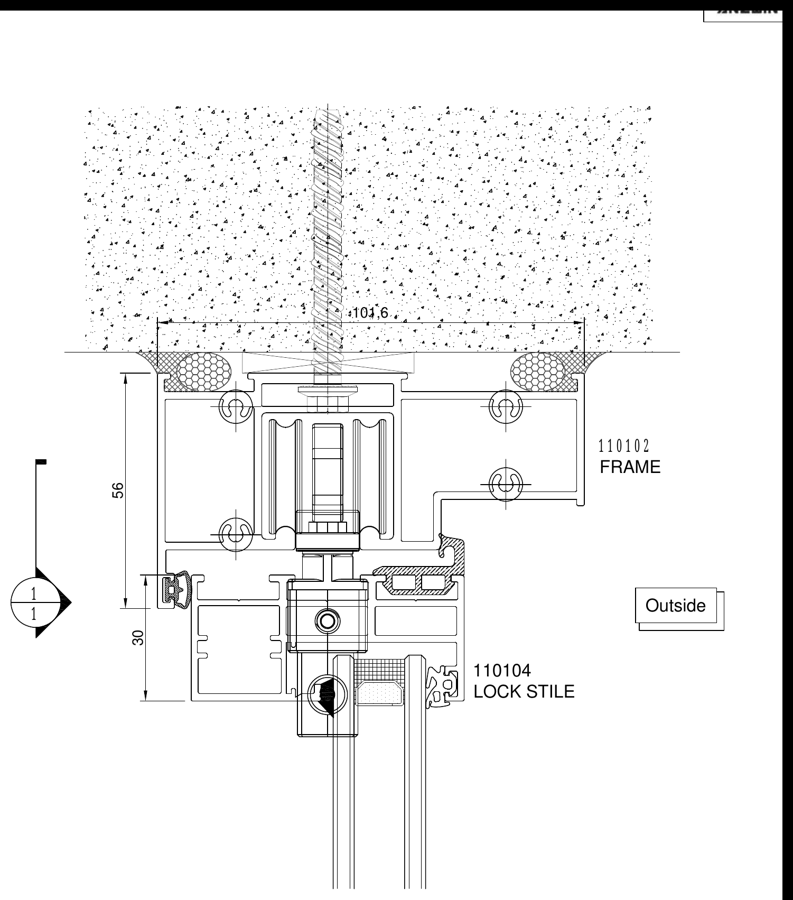

Section drawings
Representative sections from the ANZWIN technical manual. Full shop drawings are prepared for every project.
Glass
Glazing
| Type | Options |
|---|---|
| Standard double glazed (IGU) | 5 mm toughened / 12 mm argon / 5 mm toughened · 6 / 12 Ar / 6 · 5 / 9 Ar / 5 |
| Toughened single | 6, 8, 10, 12 mm |
| Laminated | 8.76, 10.76, 11.52 mm |
| Coatings & tints | Low-E, clear, obscure, grey tint |
All toughened glass is Grade A safety glass; double glazed units are argon filled. Glass to AS 1288 & AS 2208; IGUs to AS/NZS 4666.
Finish
Powder-coat colours
Black Matt
Monument
Black Satin
Woodland Grey
Silver Grey
Riversand Matt
White Birch
Pearl White
Indicative colours only — screen colours vary. Ask for physical powder-coat samples.
Insects
Flyscreen options
- Stainless steel mesh
- Heavy-duty stainless steel mesh
- High-quality alloy mesh
- Fibreglass mesh
Installation
Installation options
- Timber reveal
- Subsill / subhead & angles
- Subframe
- 35 mm fin
Brochure & test reports
Download the company brochure (PDF) or request AS 2047 test reports for certification.
Download the company brochure (PDF) or request AS 2047 test reports for certification.
Start a project
Send us your plans. We'll come back with a square-metre quote.
Fully custom sizes, shop drawings for sign-off and free technical support from quote to delivery.
