Commercial 150 Series
Window wall system and heavy-duty sliding & stacking doors for large openings, balconies and commercial frontages.
Features
Key features
- Window wall system: fixed, awning and casement
- HD2T / HD3T sliding doors with C150 152.4 mm frame
- Sliding doors up to 3000 H × 4000 W
- Robust 150 / 220 mm frames for sliding and stacking doors
- Heavy-duty rollers
- Stainless steel flyscreens
- Up to 3.5 m high, 2 m per panel
Specifications
Specifications
| Window wall | Fixed, awning, casement |
|---|---|
| Sliding doors | HD2T (2-track), HD3T (3-track) |
| Sliding door frame | C150 152.4 mm; 150 / 220 mm frames |
| Max size | 3000 H × 4000 W (sliding door); up to 3.5 m high, 2 m per panel |
| Hardware | Heavy-duty rollers, stainless steel flyscreen |
Technical

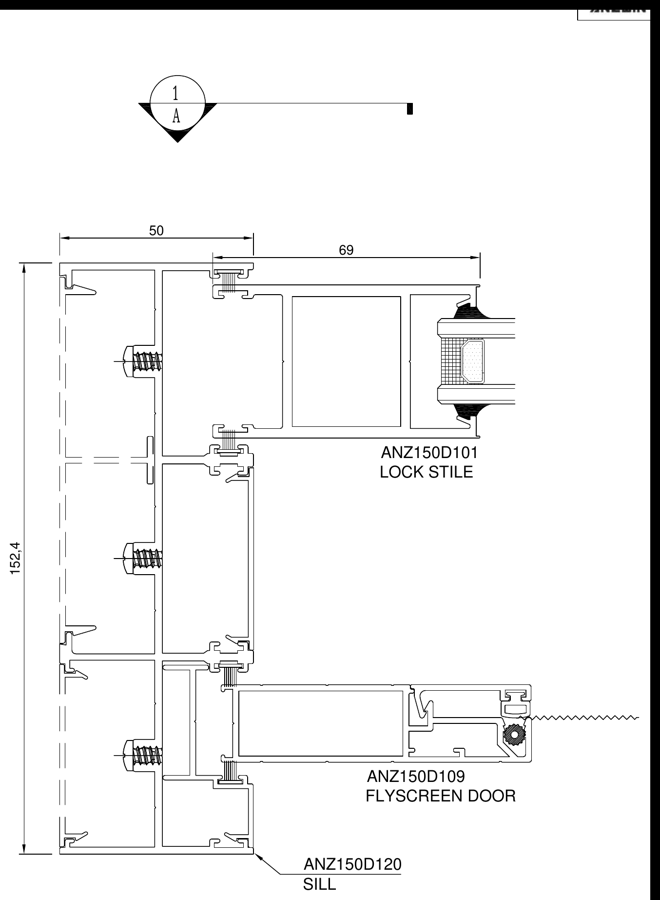

Section drawings
Representative sections from the ANZWIN technical manual. Full shop drawings are prepared for every project.
Glass
Glazing
| Type | Options |
|---|---|
| Standard double glazed (IGU) | 5 mm toughened / 12 mm argon / 5 mm toughened · 6 / 12 Ar / 6 · 5 / 9 Ar / 5 |
| Toughened single | 6, 8, 10, 12 mm |
| Laminated | 8.76, 10.76, 11.52 mm |
| Coatings & tints | Low-E, clear, obscure, grey tint |
All toughened glass is Grade A safety glass; double glazed units are argon filled. Glass to AS 1288 & AS 2208; IGUs to AS/NZS 4666.
Finish
Powder-coat colours
Black Matt
Monument
Black Satin
Woodland Grey
Silver Grey
Riversand Matt
White Birch
Pearl White
Indicative colours only — screen colours vary. Ask for physical powder-coat samples.
Insects
Flyscreen options
- Stainless steel mesh
- Heavy-duty stainless steel mesh
- High-quality alloy mesh
- Fibreglass mesh
Installation
Installation options
- Timber reveal
- Subsill / subhead & angles
- Subframe
- 35 mm fin
Brochure & test reports
Download the company brochure (PDF) or request AS 2047 test reports for certification.
Download the company brochure (PDF) or request AS 2047 test reports for certification.
